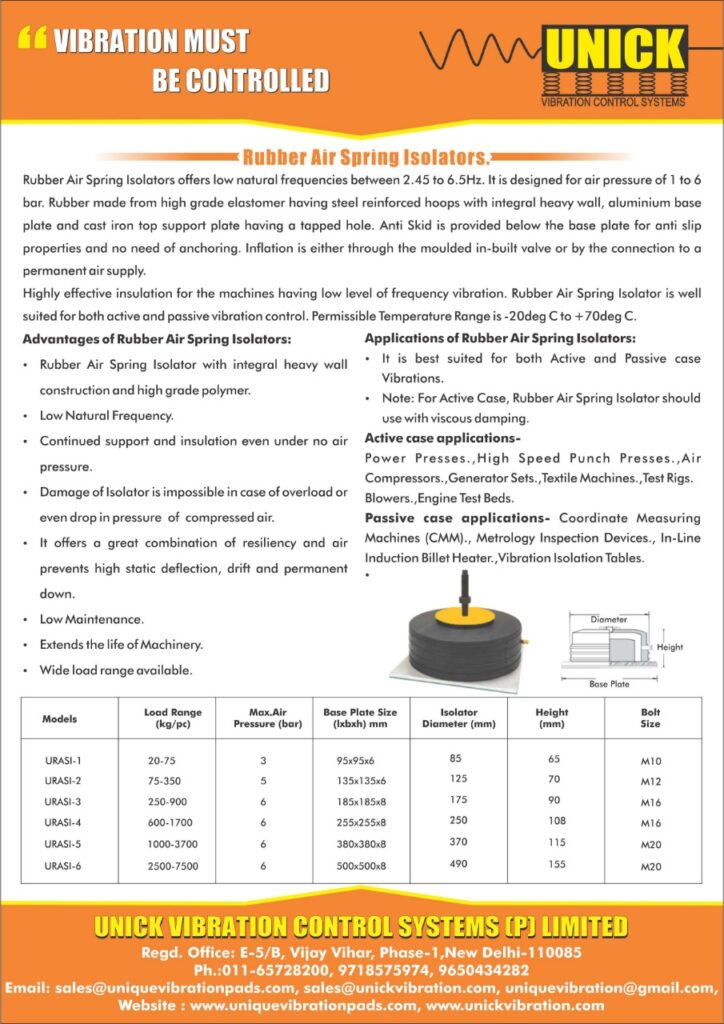

Rubber Air Spring Isolators

Rubber Air Spring Isolators

Rubber Air Spring Isolators offer low natural frequencies between 2.45 to 6.5Hz. It is designed for air pressure of 1 to 6 bar.

Rubber Air Spring Isolators is the leading manufacturer and supplier of high-quality and technologically advanced anti-vibration pads for all industrial machines

Rubber made from a high-grade elastomer having steel reinforced hoops with integral heavy walls, aluminum base plate, and cast iron top support plate having a tapped hole. Anti Skid is provided below the base plate for anti-slip properties and no need for anchoring. Inflation is either through the molded in-built valve or by the connection to a permanent air supply.

Highly effective insulation for machines having low levels of frequency vibration. Rubber Air Spring Isolator is well-suited for both active and passive vibration control.

The permissible Temperature Range is -20deg C to +70deg C.

Applications of Rubber Air Spring Isolators:

It is best suited for both Active and Passive case Vibrations.

Note: For Active Case, Rubber Air Spring Isolator should use with viscous damping.

Active case applications-

Power Presses.

High Speed Punch Presses.

Air Compressors.

Generator Sets.

Textile Machines.

Test Rigs.

Blowers.

Engine Test Beds.

Passive case applications-

Coordinate Measuring Machines (CMM).

Metrology Inspection Devices.

In-Line Induction Billet Heater.

Vibration Isolation Tables.

Surface Plates.

Electron Microscope.

Spectrometers.

Roughness Tester.

High Precision Grinding.

Polishing Machines etc.
